ODU MEDI-SNAP® Straight plug, Size 1, IP67, 10 Contacts, 0° Key
Part number
A51M03-010BCC0-0000
Type of connector
Straight plug
Locking-system
Break-Away
Size
Size 1
Keying
0°
To get a free sample or make an inquiry, add the product to the notepad.
Add to Notepad

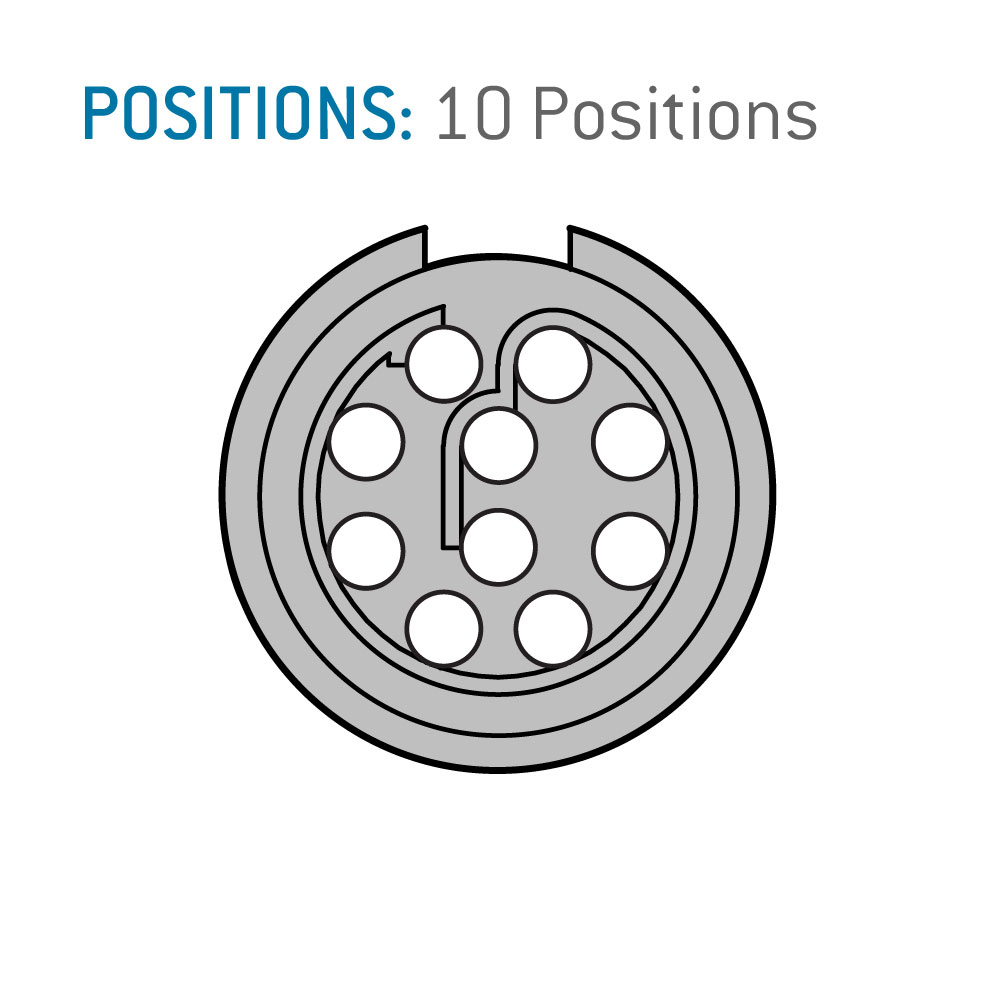

Illustrations may differ from original product. Dimensions, unless otherwise specified, in mm. Positions view from termination side.
Contact Insert Description
Number of contacts
10
Contact type
Pins
Contact diameter
0.5 mm
Insulator material
PSU
Wire cross section
28 AWG
Termination type
Soldercup
Termination diameter
0.45 mm
Reverse gender on request
Technical information
Max. creepage and air clearance distance
0.5 mm (Contact to contact)
Nominal current single contact
4 A
IEC 60512-5-2:2002 (DIN EN 60512-5-2:2003)
Nominal current insert (per individual contact)
2,2 A
VDE 0298-4:2003
Test voltage
1,35 kV DC
SAE AS 13441:1998 method 3001.1
All shown connectors are rated to a safety extra low voltage (SELV) of less than 50 V AC / 75 V DC, according to IEC 61140:2016 (VDE 0140-1:2016) Protection against electric shock - Common aspects for installation and equipment. In case other standards rule a specific use of the connector, the application specific safety criteria shall be considered first. In this context, lower voltage ratings may be valid. Warning: Danger to life for operating voltages above 50 V AC / 120 V DC!
Mechanical and Environmental data
Degree of protection*
IP67
Operating temperature
-50°C - 120°C
Mating cycles
5000
*mated condition
Insulator Materials MEDI-SNAP®
| Standard | Housing and insulator - PSU | |
|---|---|---|
| Flammability rating | UL 94 | V-0/4.5 |
| Operation temperature | −50 to +170°C | |
| Dielectric strength | IEC 60243-1:2013 (VDE 0303-21:2014) | 17 kV/mm |
| Comparative figure of the creep resistance CTI | IEC 60112: 2009 (VDE 0303-11:2010) | 150 |
| Water absorption | ASTM D 570:1998 / ISO 62:2008 | 0.3 % |
| Sterilization (autoclaving) | DIN EN 13060:2019-02 | ~ 20 cycles |
| Insulation resistance | IEC 60512-3-1:2002 (DIN EN 60512-3-1:2003-01) | > 1 × 1012 Ω |
Material and Surface Treatments
Housing
PSU white
Contact
Cu-alloy with gold finish
Mating Connectors
82 Result(s)
General Information:
All shown connectors are defined without breaking capacity (COC) according to IEC 61984:2008 (VDE 0627:2009).
The respective selected ODU connectors with data transfer functionality can transmit common data transmission such as HDMI® 2.0, USB® 3.2 Gen 1x1, FireWire® and eSATA®, but they are not HDMI®-, USB®-, FireWire®- and eSATA®-standard connectors.
ODU MEDI-SNAP® and MINI-SNAP® is UL-approved (E110586).
ODU reserves the right to make changes based on the current state of knowledge without prior notice without being obliged to provide replacement deliveries or refinements of older designs.
