ODU AMC® Easy-Clean Panel mount plug, Size 0, IP6K8 / IP6K9K, 7 Contacts, A (light brown) Key

Part number
GW0YAR-P07WDD0-R00L
Type of connector
Panel mount plug
Locking-system
Break-Away, Push-Pull
Size
Size 0
Keying
A (light brown)
Cable diameter
3 - 5.5 mm
Data SheetSTP File

To get a free sample or make an inquiry, add the product to the notepad.

Add to Notepad

The product is also available from our partners

Order here!
Order here!

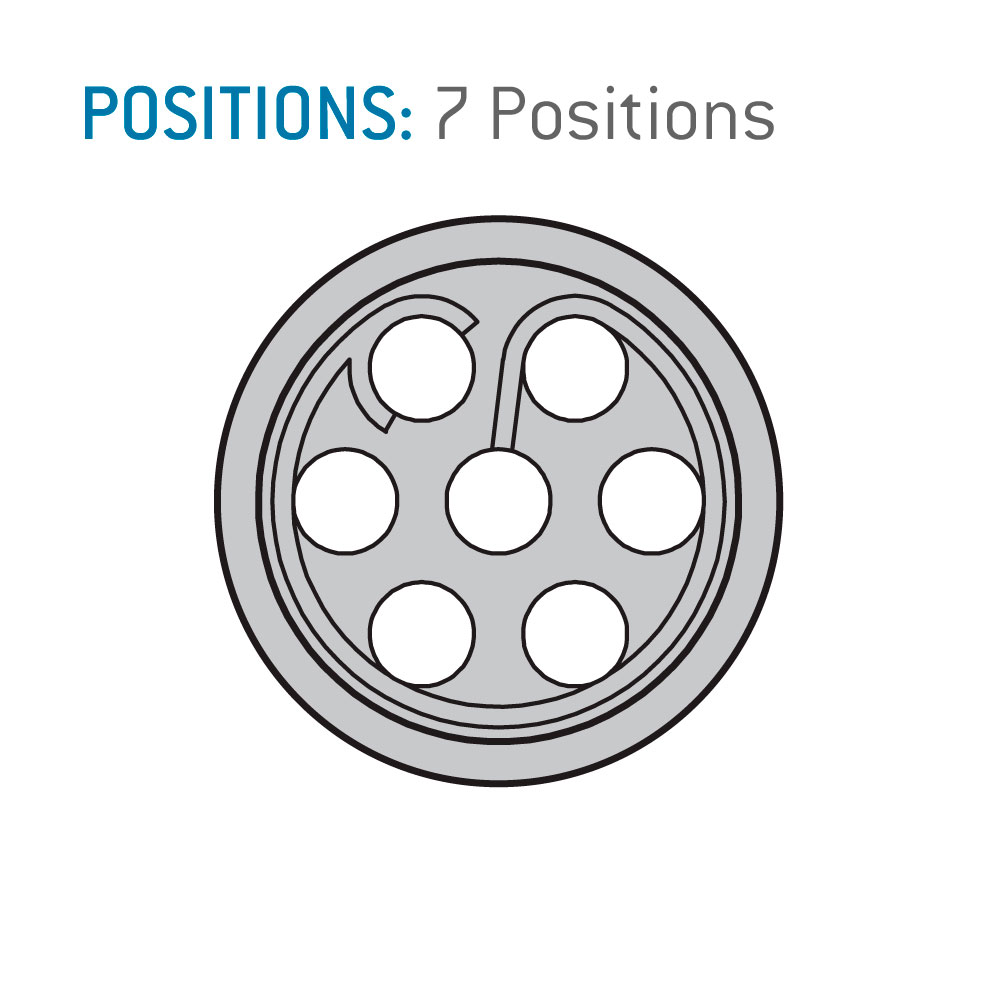

Illustrations may differ from original product. Dimensions, unless otherwise specified, in mm. Positions view from termination side.

Contact Insert Description

Number of contacts
7
Contact type
Flat contact
Contact diameter
0.6 mm
Insulator material
PEEK
Wire cross section
26 AWG
Termination type
Soldercup
Termination diameter
0.65 mm
Reverse gender on request

Technical information

Nominal current single contact
2 A
IEC 60512-5-2:2002 (DIN EN 60512-5-2:2003)
Test voltage
0,6 kV AC
EIA-364-20F:2019-02

All shown connectors are rated to a safety extra low voltage (SELV) of less than 50 V AC / 75 V DC, according to IEC 61140:2016 (VDE 0140-1:2016) Protection against electric shock - Common aspects for installation and equipment. In case other standards rule a specific use of the connector, the application specific safety criteria shall be considered first. In this context, lower voltage ratings may be valid. Warning: Danger to life for operating voltages above 50 V AC / 120 V DC!

Mechanical and Environmental data

Degree of protection*
IP6K8 / IP6K9K
Operating temperature
-51°C - 125°C
Mating cycles
5000
*mated condition

Material and Surface Treatments

Housing
Aluminum with ruthenium finish
Contact
Cu-alloy with gold finish

Mating Connectors

2 Result(s)

General Information:

All shown connectors are defined without breaking capacity (COC) according to IEC 61984:2008 (VDE 0627:2009).
The respective selected ODU connectors with data transfer functionality can transmit common data transmission such as HDMI® 2.0, USB® 3.2 Gen 1x1, FireWire® and eSATA®, but they are not HDMI®-, USB®-, FireWire®- and eSATA®-standard connectors.
ODU reserves the right to make changes based on the current state of knowledge without prior notice without being obliged to provide replacement deliveries or refinements of older designs.
